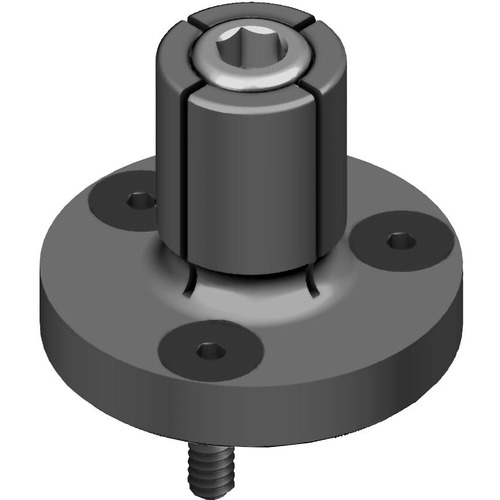

| Type | Xpansion Clamp | Contact Length | 0.590″ |
| Thread Size | 1/4″-20 | Minimum Diameter | 0.480″ |
| Model No | 31100 | Flange Diameter | 1.240″ |
| Clamp Height | 3/4″ | Flange Thickness | 0.230″ |
| Holding Force | 1,900 lbs | Overall Height | 0.980″ |
| Outer Edge Screw | 6-32 on .910 BHC | Thread Length | 0.500″ |
| Style | Inch | Diameter | 0.560″ |
Product Features
| Remarks | •The ID Xpansion clamp is the ideal way to hold parts on an inside diameter for multiple machining on vertical or horizontal machining centers •It can also be used as an expanding mandrel on a lathe •The flange diameter of the clamp is held to a close tolerance for precision locating in a machined pocket on work cubes and fixture plates •One of the benefits of these low profile clamps is holding many lathe parts, for secondary machining, on one compact set up •They are quickly tightened with a hex key, torque driver or can be mated to hydraulic pull cylinders for automation. | Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Length
3.07090
Package Width
2.04720
Package Height
1.33860
Package Weight
0.16
